Direct origin probing
- Control
- Outbound-only tunnel and zero published application ports
- Residual risk
- Cloudflare account security and provider availability remain dependencies.
Operating
Secure Self-Hosted Infrastructure / Academic Publishing2026 - present
Revista BRASILCON
Published a national legal journal from self-hosted infrastructure without exposing a single inbound application port.
- Role
- Infrastructure architect and sole operator
- Environment
- Live production · Sanitized architecture
- Ownership
- Architecture · Deployment · Hardening · DNS · Recovery · Monitoring · Runbooks
brasilcon-lab5 system boundaries
Reader
Cloudflare Edge
cloudflared
OJS
0published application portsArchitecture property
3isolated production containers
1operator across day-one and day-two work
Livenational publishing platform
01 / Interactive system
Move through the system layer by layer
brasilcon-labLive production · Sanitized architecture · Read-only
Operating
System map
Boundaries and responsibilities
Public or untrustedAuthenticated boundaryInternal-only dependency
Reader selected.
02 / Context
The problem behind the system
BRASILCON had no digital editorial platform at all: submission, review, editorial rounds, and publication had to be built from zero, without taking on a conventional hosted-infrastructure budget.
The security challenge was unusually concrete: serve a public institution from residential infrastructure while keeping the origin and application ports out of the normal inbound attack path.
Read the full project overview

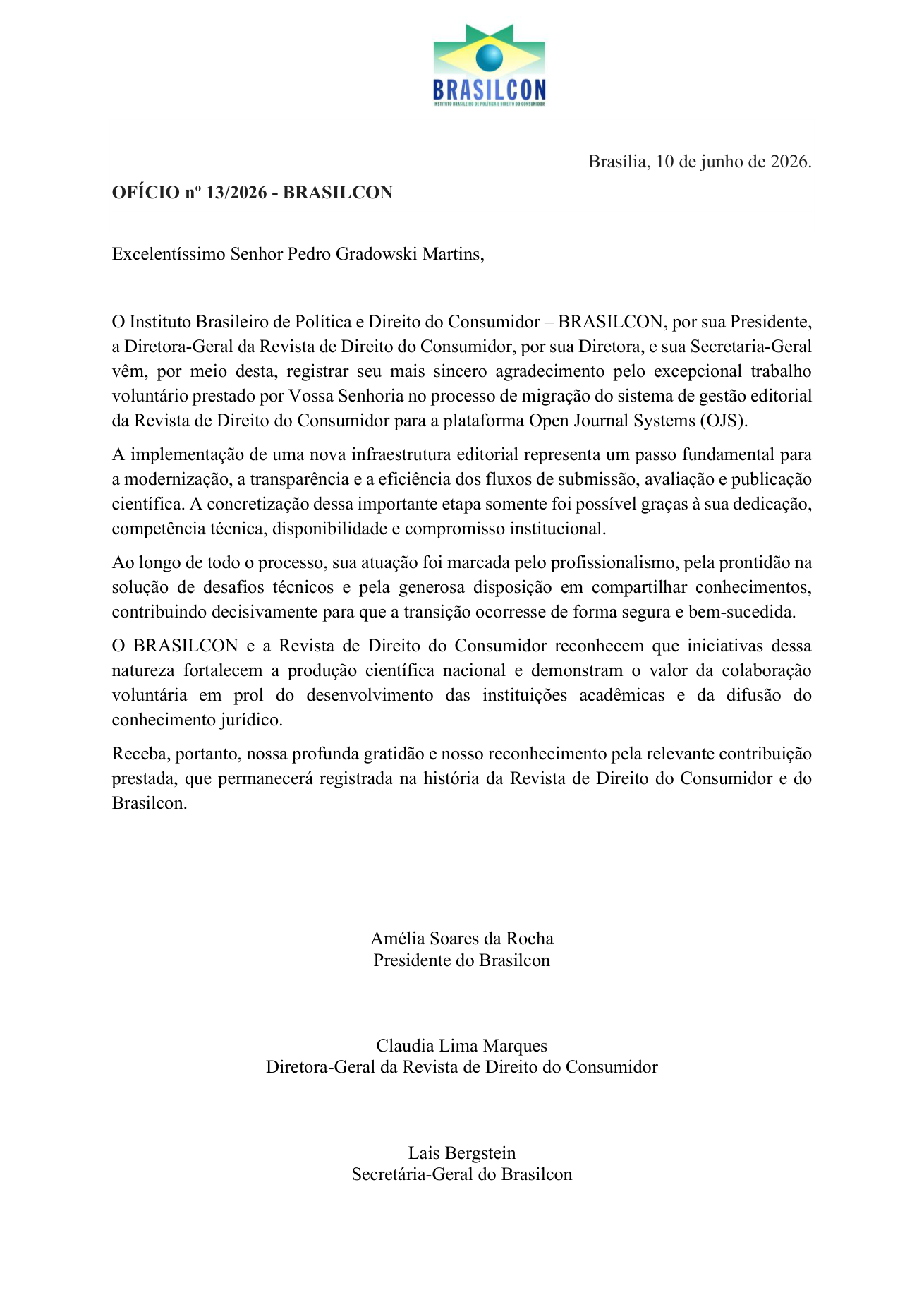

Volunteer build of the editorial management platform for the Revista de Direito do Consumidor - the journal of BRASILCON, the Brazilian Institute of Consumer Policy and Law. There was no system to migrate: the journal had no digital editorial platform, so I built one from scratch on my own server - a self-hosted Open Journal Systems (OJS) stack, now live at revistabrasilcon.com. I architected it, run it in production solo, and BRASILCON formally recognized the work in an official letter (Ofício nº 13/2026) signed by its President, the journal's Director-General, and its Secretary-General.
ZERO-OPEN-PORT INGRESS - The core security decision: the journal is published to the internet without a single inbound port. Ingress is an outbound-only Cloudflare Tunnel - the cloudflared container dials out to Cloudflare's edge, and all public traffic rides back down that authenticated connection. No port-forwards, no exposed origin IP, no direct attack surface on a residential network. TLS terminates at Cloudflare's edge, which also provides DDoS absorption and traffic filtering for free.
DEFENSE IN DEPTH BY ARCHITECTURE - The stack is three Docker containers on an isolated bridge network: a custom-built OJS 3.4 image (configuration and patches baked in at build time - the running container is reproducible, not hand-mutated), MariaDB for the editorial database, and cloudflared. The compose file publishes zero host ports: the database is reachable only by the OJS container on the internal Docker network, and OJS itself is reachable only through the tunnel. Even someone on the LAN cannot talk to the database directly.
OPERATIONS - All three containers restart automatically and survive reboots unattended. Day-2 work is mine alone: image rebuilds, DNS, tunnel health monitoring, incident documentation and runbooks. The platform digitizes the journal's full academic workflow - article submission, double-blind peer review, editorial rounds, and publication - for a national legal institute, running on hardware I own.
03 / Security
Threats, controls, and what remains
No control is presented as total risk elimination.
Direct database access
- Control
- Internal Docker network with no database host port
- Residual risk
- An application compromise may still reach its database dependency.
Credentials embedded in configuration
- Control
- Runtime secret files instead of inline production values
- Residual risk
- Host-level compromise can still expose mounted secrets.
Incomplete recovery after reboot
- Control
- Restart policies, health checks, and documented runbooks
- Residual risk
- External monitoring is still required to detect partial recovery.
04 / Decisions
The trade-offs that shaped the build
DecisionOutbound-only ingress
Publish without router port forwarding.
- Reason
- Reduce direct origin exposure on residential infrastructure.
- Trade-off
- Creates a meaningful dependency on tunnel identity and provider uptime.
- Revisit when
- Move to redundant or managed ingress when budget and availability requirements justify it.
DecisionInternal-only database
Make the application the sole database client.
- Reason
- There is no operational need for LAN or public database access.
- Trade-off
- Administration must occur through controlled host workflows.
- Revisit when
- Add a dedicated management path only if operations require it.
DecisionReproducible application image
Bake configuration and patches at build time.
- Reason
- Avoid hand-mutated production containers.
- Trade-off
- The image build and upstream base must be maintained.
- Revisit when
- Adopt a broader release pipeline if more operators or environments appear.
05 / Operations
The unhappy path is part of the design
What if the tunnel disconnects?
The public path stops while the origin remains closed to direct inbound traffic.
- Signal
- Tunnel health and external journal checks fail.
- Response
- Inspect connector state, credentials, DNS, and edge status before rebuilding.
What if the host reboots unattended?
Container restart policies restore the stack in dependency order.
- Signal
- Health checks show database readiness and application recovery.
- Response
- Use the runbook when any service remains unhealthy after restart.
06 / Implementation
How the decisions appear in the build
docker-compose.yml
01# Zero published host ports. The journal is reachable ONLY through the tunnel.02services:03 ojs:04 build: ./ojs # OJS 3.4 - patches baked in at build time05 depends_on:06 db: { condition: service_healthy }07 networks: [internal] # no route to the outside world08 restart: unless-stopped09 # NOTE: no `ports:` block - nothing is ever bound to the host.10 11 db:12 image: mariadb:1113 environment:14 MARIADB_PASSWORD_FILE: /run/secrets/db_pass # secret, never inline15 secrets: [db_pass]16 networks: [internal] # reachable only by the ojs container17 volumes: [ojs_db:/var/lib/mysql]18 restart: unless-stopped19 20 cloudflared:21 image: cloudflare/cloudflared:latest22 command: tunnel --no-autoupdate run23 environment:24 TUNNEL_TOKEN_FILE: /run/secrets/cf_token25 secrets: [cf_token]26 networks: [edge, internal] # dials OUT to Cloudflare's edge27 restart: unless-stopped28 29networks:30 edge: {} # cloudflared egress only31 internal: { internal: true } # air-gapped from the public internet32 33secrets:34 db_pass: { file: ./secrets/db_pass.txt }35 cf_token: { file: ./secrets/cf_token.txt }Representative / sanitized excerpt
Zero published host ports - ingress is an outbound-only Cloudflare Tunnel.
OJS 3.4PHPMariaDBDocker ComposeCloudflare TunnelZero-Trust IngressDebianSelf-Hosted
07 / Evidence
Proof, source, and inspectable outcomes
08 / Results
What the project demonstrates
National journal workflow operating on infrastructure Pedro owns
Public access without a direct application-port path to the origin
Architecture, operation, and recovery owned by one accountable operator
- The exposure model is understandable and enforceable.
- Reproducible containers make recovery less dependent on memory.
- External health monitoring
- Encrypted off-site backups
- Scheduled recovery exercises
- Production ownership
- Linux and container operations
- Security architecture under real constraints
